测量参考点:

1. 测量点位于设备指示灯边角;

2. 使用辅助杆时,测量点为底仓尖角。

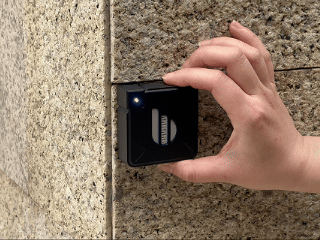

Measurement reference point:

1. The measurement point is located at the corner of the device indicator light;

2. When using an auxiliary rod, the measurement point is the sharp corner of the bottom compartment.

測定基準点:

1. 測定点は機器の指示灯の角に位置する。

2. 補助棒を使用する場合、測定点は底倉の尖角である。

打开或关闭宝尺:

1. 打开方法:水平拿起,上下快速晃动,LED亮起即可开启设备。

2. 关闭方法:默认35秒无任何操作将自动关机。

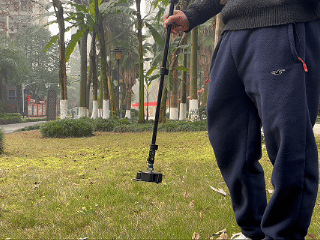

Turn on or turn off the tape measure:

1. Turn-on method: Pick it up horizontally, shake it quickly up and down, and the LED lights up to indicate that the device is turned on.

2. Turn-off method: It will automatically turn off if there is no operation for 35 seconds by default.

宝尺のオン/オフ:

1. オンの方法:水平に持ち、上下に素早く振るとLEDが点灯し、デバイスが起動します。

2. オフの方法:35秒間何も操作がない場合、自動的に電源が切れます。

开始测量:

1. app端选择测量类型,设备自动连接;

2. 将设备静置在起点位置;

3. 等绿灯亮起后移动设备。

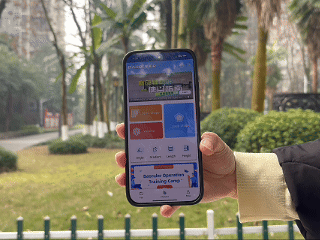

Start measuring:

1. Select the measurement type on the app, and the device will automatically connect;

2. Place the device at the starting point;

3. Wait for the green light to turn on, then move the device.

測定開始:

1. アプリ側で測定タイプを選択し、デバイスが自動的に接続されます。

2. デバイスをスタート位置に静置します。

3. 青信号が点灯したらデバイスを移動させます。

快速平稳移动:

1. 移动过程中不要太慢,快速平稳移动。

2. 移动过程中不要晃动或翻转设备。

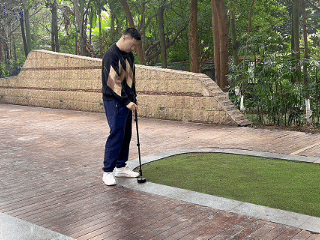

Move quickly and steadily:

1. Do not move too slowly during the process, move quickly and steadily.

2. Do not shake or flip the device during the movement process.

素早く安定した移動:

1. 移動中はゆっくりしすぎず、速く安定して移動してください。

2. 移動中は機器を揺らしたり反転させたりしないでください。

单次移动12秒:

1. 单次移动12秒内,静置设备一次;

2. 选择平整位置静置设备,绿灯亮起后继续移动;

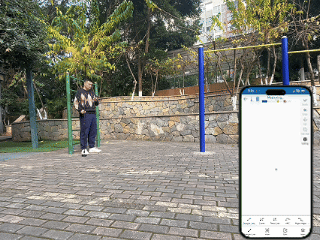

Single movement: 12 seconds:

1. Move the device for 12 seconds at a time, then pause it once;

2. Choose a flat location to place the device, and continue moving after the green light is on;

1回の移動12秒:

1. 1回の移動後、12秒間静置する;

2. 平らな場所を選び、デバイスを静置し、緑色ランプが点灯したら再度移動する;

不平整表面测量:

1. 将设备直接放置在地面待测点,绿灯亮起后继续移动;

2. 略微松开辅助杆,保持稳定,绿灯亮起后继续移动;

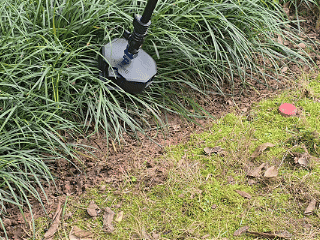

Measurement of uneven surfaces:

1. Place the device directly on the ground at the point to be tested, and continue to move after the green light comes on;

2. Slightly loosen the auxiliary rod to maintain stability, and continue to move after the green light comes on;

不平整表面の測定:

1. 装置を直接地面の測定ポイントに置き、緑色ランプ点灯後に移動を続ける;

2. 補助棒をやや緩め、安定させてから緑色ランプ点灯後に移動を続ける;

墙面测量:

1. 手持设备紧贴墙壁,绿灯亮起后继续移动;

2. 避免移动过程中晃动或翻转设备;

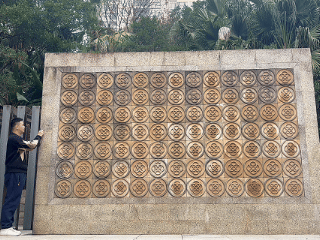

Wall measurement:

1. Hold the device tightly against the wall and continue to move it after the green light illuminates;

2. Avoid shaking or flipping the device during movement;

壁面測定:

1. 手持ちのデバイスを壁に密着させ、緑色のランプが点灯したら移動を続ける;

2. 移動中にデバイスを揺らしたり反転させたりしないでください;

完成测量:

1. 将设备静置在结束点位置,等绿灯亮起后,点击“完成”。

2. 对测量结果进行保存。

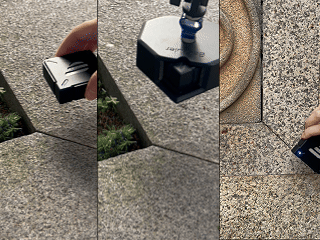

Complete measurement:

1. Place the device at the end point and click "Finish" after the green light is on.

2. Save the measurement results.

測定完了:

1. 装置を終了点の位置に静置し、緑信号が点灯したら「完了」をクリックする。

2. 測定結果を保存する。
